Svenska沃爾沃柴油發動機機油泵零部件1556177
首頁
產品展示>沃爾沃柴油發動機機油泵零部件1556177
產品中心
沃爾沃柴油發動機機油泵零部件1556177
詳細描述

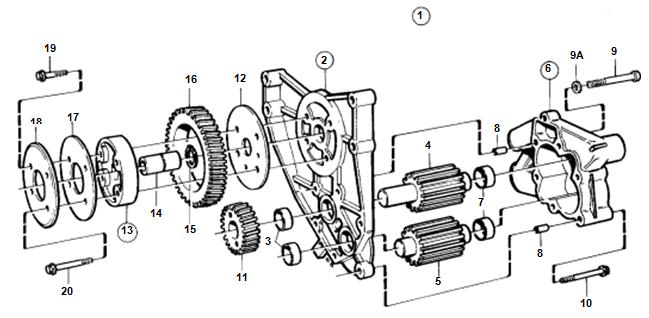

沃爾沃柴油發動機機油泵零部件1556177
|
Ref |
Part No. |
Qty |
Description |
Notes | ||
|
1 |
1556177 |
1 |
Oil pump |
|||
|
2 |
1543965 |
1 |
Bracket |
|||
|
3 |
2 |
Bushing |
Included in overhaul kit. |
|||
|
4 |
1 |
Shaftwith gear |
Included in overhaul kit. |
|||
|
5 |
1 |
Shaftwith gear |
Included in overhaul kit. |
|||
|
6 |
1556019 |
1 |
Oil pump housing |
|||
|
7 |
2 |
Bushing |
Included in overhaul kit. |
|||
|
8 |
401146 |
2 |
Guide sleeve |
|||
|
9 |
100223 |
3 |
Screw |
|||
|
9A |
941907 |
3 |
Spring washer |
|||
|
10 |
965183 |
3 |
Flange screw |
|||
|
11 |
1543452 |
1 |
Drive gear |
Can only be used together with set 276150.. Can |
be replaced by drive gear 1556097 to | |
|
12 |
1543598 |
1 |
Thrust washer |
|||
|
13 |
1543799 |
1 |
Spindle |
|||
|
14 |
1543597 |
1 |
Pin |
|||
|
15 |
914459 |
1 |
Lock ring |
|||
|
16 |
1543450 |
1 |
Gear |
|||
|
17 |
1543900 |
1 |
Thrust washer |
|||
|
18 |
1543901 |
1 |
Bearing shield |
|||
|
19 |
965186 |
3 |
Flange screw |
|||
|
20 21 |
965188 276150 |
1 1 |
Screw Overhaul kit |
Can only be used together with drive gear 1543452. | ||
