John Deere約翰迪爾強鹿發動機空氣濾清器零件圖冊
詳細描述
空氣濾清器
John Deere約翰迪爾強鹿6068 6.8L柴油發動機空氣濾清器零件圖冊

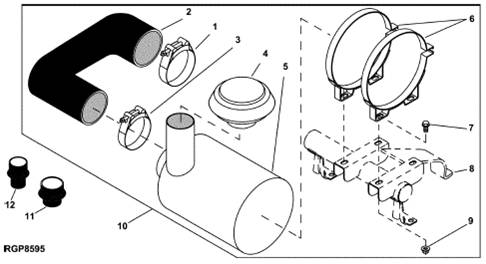

9701 (AIR CLEANER TWO STAGE)
9701 (FILTRE A AIR ET CHAPEAU DE PLUIE)
9701 (LUFTFILTER UND REGENSCHUTZKAPPE)
9701 (DEPURATORE DI ARIA E PROTEZIONE DELLA PIOGGIA)
9701 (FILTRO DE AIRE Y CASQUILLO DE LA LLUVIA)
9701 (LUFTFILTER OCH REGNSKYDD)
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 AT50923 HOSE CLAMP 1 X
2 R128438 SUCTION HOSE 1 X
3 AT56657 HOSE CLAMP 1 X
4 AT175358 CAP 1 X
5 AT115660 AIR CLEANER 1 X
6 AR64937 BAND 2 X
7 19M7784 SCREW 4 X M10 X 20
8 RE70724 BRACKET 1 X
9 14M7296 FLANGE NUT 4 X
10 RE500801 AIR CLEANER 1 X
11 R128992 REDUCER 1 X
12 R128993 REDUCER 1 X

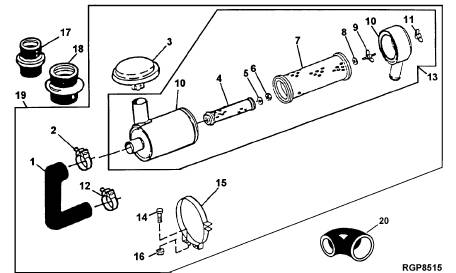

9701 (AIR CLEANER AND RAIN CAP)
9701 (FILTRE A AIR ET CHAPEAU DE PLUIE)
9701 (LUFTFILTER UND REGENSCHUTZKAPPE)
9701 (DEPURATORE DI ARIA E PROTEZIONE DELLA PIOGGIA)
9701 (FILTRO DE AIRE Y CASQUILLO DE LA LLUVIA)
9701 (LUFTFILTER OCH REGNSKYDD)
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 R128437 SUCTION HOSE 1 X
2 AT56657 HOSE CLAMP 1 X
3 AT175358 CAP 1 X
4 AR79680 FILTER ELEMENT 1 X
5 AR52066 PACKING 1 X
6 E17421 LOCK NUT 1 X
7 AR79679 AIR FILTER 1 X
8 AR52065 PACKING 1 X
9 AN191169 WING SCREW 1 X
10 AR84565 COVER 1 X
11 R48723 WING NUT 1 X
12 R110531 CLAMP 1 X
13 AT115660 AIR CLEANER 1 X
14 19M7784 SCREW 4 X
15 AR64936 BRACKET 2 X
16 14M7296 FLANGE NUT 4 X M10
17 R128993 REDUCER 1 X
18 R128992 REDUCER 1 X
19 RE68008 AIR CLEANER 1 X
20 R128994 ELBOW FITTING 1 X
