John Deere約翰迪爾強鹿發動機曲軸和主軸軸承瓦零件圖冊
詳細描述
曲軸和主軸軸承瓦
John Deere約翰迪爾強鹿柴油發動機曲軸和主軸軸承瓦零件圖冊

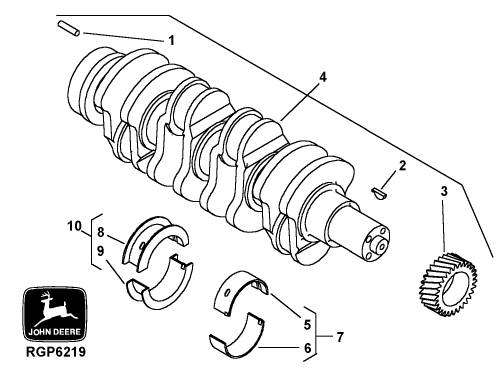

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R48685 DOWEL PIN 1 X X X 12.700 X 28.448 MM
2 26M4224 SHAFT KEY 1 X X X 4 X 16 MM
3 R120631 GEAR 1 X X X
4 RE52850 CRANKSHAFT 1 X X X (MARKED R116076) (ALSO ORDER RE59811)
(SUB RE515785 AND RE516340)
5 .................. BEARING 6 X X X (MARKED R123561) (SUB RE65165)
.................. BEARING 6 X X X (B) US, 0.254 MM, (MARKED R130576) (SUB
RE65911)
6 .................. BEARING 6 X X X (MARKED R123562) (SUB RE65165)
.................. BEARING 6 X X X (B) US, 0.254 MM, (MARKED R130577) (SUB
RE65911)
7 RE65165 BEARING KIT 6 X X X (B) (STD)
RE65911 BEARING 6 X X X (B) US, 0.254 MM
8 .................. BEARING 1 X X X (MARKED R123563) (SUB RE65168)
.................. BEARING 1 X X X (B) US, 0.254 MM, (MARKED R130574) (SUB
RE65912)
9 .................. BEARING 1 X X X (MARKED R123564) (SUB RE65168)
.................. BEARING 1 X X X (B) US, 0.254 MM, (MARKED R130575) (SUB
RE65912)
10 RE65168 BEARING KIT 1 X X X (B)
RE65912 THRUST BEARING 1 X X X (B) US, 0.254 MM
.. R135918 BOLT 6 X X X (A)
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900

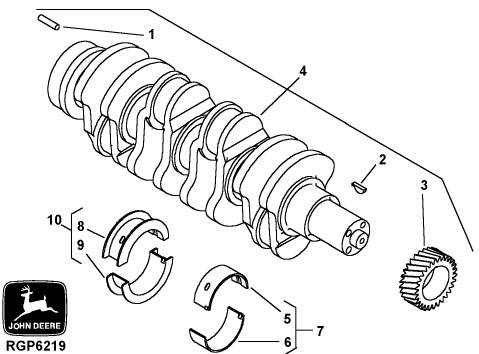

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R48685 DOWEL PIN 1 X X 12.700 X 28.448 MM
2 26M4224 SHAFT KEY 1 X X 4 X 16 MM
3 R120631 GEAR 1 X X
4 RE52850 CRANKSHAFT 1 X X (MARKED R116076) (ALSO ORDER RE59811)
(SUB RE515785 AND RE516340)
5 .................. BEARING 6 X X (MARKED R123561) (SUB RE65165)
.................. BEARING 6 X X (B) US, 0.254 MM, (MARKED R130576) (SUB
RE65911)
6 .................. BEARING 6 X X (MARKED R123562) (SUB RE65165)
.................. BEARING 6 X X (B) US, 0.254 MM, (MARKED R130577) (SUB
RE65911)
7 RE65165 BEARING KIT 6 X X (B) (STD)
RE65911 BEARING 6 X X (B) US, 0.254 MM
8 .................. BEARING 1 X X (MARKED R123563) (SUB RE65168)
.................. BEARING 1 X X (B) US, 0.254 MM, (MARKED R130574) (SUB
RE65912)
9 .................. BEARING 1 X X (MARKED R123564) (SUB RE65168)
.................. BEARING 1 X X (B) US, 0.254 MM, (MARKED R130575) (SUB
RE65912)
10 RE65168 BEARING KIT 1 X X (B)
RE65912 THRUST BEARING 1 X X (B) US, 0.254 MM
.. R135918 BOLT 6 X X (A)
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900

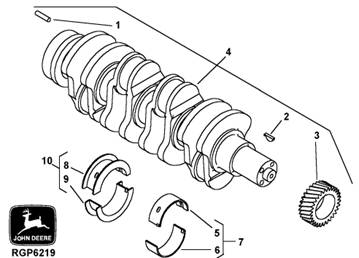

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 R48685 DOWEL PIN 1 X X X 12.700 X 28.448 MM
2 26M4224 SHAFT KEY 1 X X X 4 X 16 MM
3 R120631 GEAR 1 X X X
4 RE52850 CRANKSHAFT 1 X X X (MARKED R116076) (ALSO ORDER RE59811)
(SUB RE515785 AND RE516340)
5 .................. BEARING 6 X X X (MARKED R123561) (SUB RE65165)
.................. BEARING 6 X X X (B) US, 0.254 MM, (MARKED R130576) (SUB
RE65911)
6 .................. BEARING 6 X X X (MARKED R123562) (SUB RE65165)
.................. BEARING 6 X X X (B) US, 0.254 MM, (MARKED R130577) (SUB
RE65911)
7 RE65165 BEARING KIT 6 X X X (B) (STD)
RE65911 BEARING 6 X X X (B) US, 0.254 MM
8 .................. BEARING 1 X X X (MARKED R123563) (SUB RE65168)
.................. BEARING 1 X X X (B) US, 0.254 MM, (MARKED R130574) (SUB
RE65912)
9 .................. BEARING 1 X X X (MARKED R123564) (SUB RE65168)
.................. BEARING 1 X X X (B) US, 0.254 MM, (MARKED R130575) (SUB
RE65912)
10 RE65168 BEARING KIT 1 X X X (B)
RE65912 THRUST BEARING 1 X X X (B) US, 0.254 MM
.. R135918 BOLT 6 X X X (A)
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900

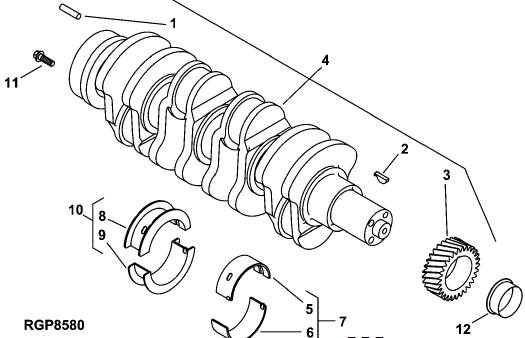

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R48685 DOWEL PIN 1 X X 12.700 X 28.448 MM
2 26M4224 SHAFT KEY 1 -923207 X X 4 X 16 MM
R505609 SHAFT KEY 1 923208- X X
3 R120631 GEAR 1 X X
4 RE500016 CRANKSHAFT 1 -923207 X X (MARKED R116076) (ALSO ORDER RE59811)
(SUB RE515785 AND RE516340)
RE515785 CRANKSHAFT 1 923208- X X (MARKED R116076)
5 .................. BEARING 6 X X (MARKED R123561) (SUB RE65165)
.................. BEARING 6 X X (B) US, 0.254 MM, (MARKED R130576) (SUB
RE65911)
6 .................. BEARING 6 X X (MARKED R123562) (SUB RE65165)
.................. BEARING 6 X X (B) US, 0.254 MM, (MARKED R130577) (SUB
RE65911)
7 RE65165 BEARING KIT 6 X X (B) (STD)
RE65911 BEARING 6 X X (B) US, 0.254 MM
8 .................. BEARING 1 X X (MARKED R123563) (SUB RE65168)
.................. BEARING 1 X X (B) US, 0.254 MM, (MARKED R130574) (SUB
RE65912)
9 .................. BEARING 1 X X (MARKED R123564) (SUB RE65168)
.................. BEARING 1 X X (B) US, 0.254 MM, (MARKED R130575) (SUB
RE65912)
10 RE65168 BEARING KIT 1 X X (B)
RE65912 THRUST BEARING 1 X X (B) US, 0.254 MM
11 R135918 BOLT 6 X X
12 RE59811 SLEEVE 1 903208- X X
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900

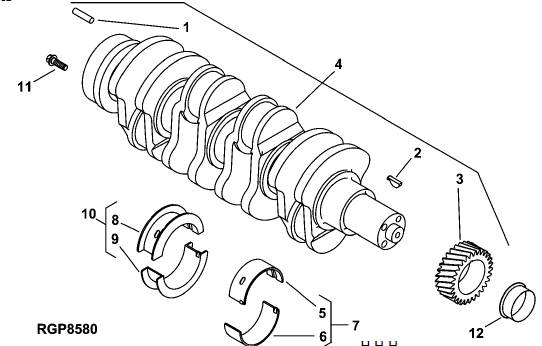

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R48685 DOWEL PIN 1 X X X 12.700 X 28.448 MM
2 26M4224 SHAFT KEY 1 -923207 X X X 4 X 16 MM
R505609 SHAFT KEY 1 923208- X X X
3 R120631 GEAR 1 X X X
4 RE500016 CRANKSHAFT 1 -923207 X X X (MARKED R116076) (ALSO ORDER RE59811)
(SUB RE515785 AND RE516340)
RE515785 CRANKSHAFT 1 923208- X X X (MARKED R116076)
5 .................. BEARING 6 X X X (MARKED R123561) (SUB RE65165)
.................. BEARING 6 X X X (B) US, 0.254 MM, (MARKED R130576) (SUB
RE65911)
6 .................. BEARING 6 X X X (MARKED R123562) (SUB RE65165)
.................. BEARING 6 X X X (B) US, 0.254 MM, (MARKED R130577) (SUB
RE65911)
7 RE65165 BEARING KIT 6 X X X (B) (STD)
RE65911 BEARING 6 X X X (B) US, 0.254 MM
8 .................. BEARING 1 X X X (MARKED R123563) (SUB RE65168)
.................. BEARING 1 X X X (B) US, 0.254 MM, (MARKED R130574) (SUB
RE65912)
9 .................. BEARING 1 X X X (MARKED R123564) (SUB RE65168)
.................. BEARING 1 X X X (B) US, 0.254 MM, (MARKED R130575) (SUB
RE65912)
10 RE65168 BEARING KIT 1 X X X (B)
RE65912 THRUST BEARING 1 X X X (B) US, 0.254 MM
11 R135918 BOLT 6 X X X
12 RE59811 SLEEVE 1 903208- X X X
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
(A) FLYWHEEL TO CRANKSHAFT (B) OPTION 9900
