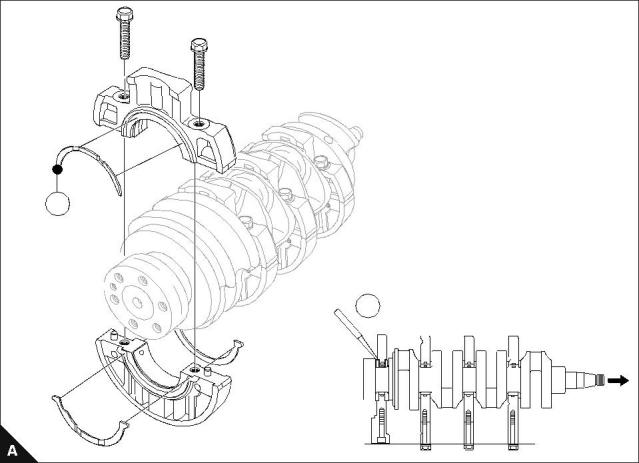

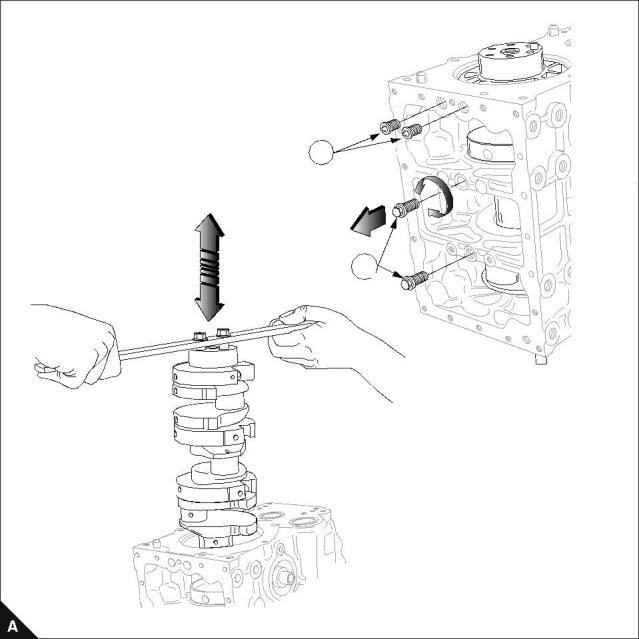

Crankshaft retainer setscrews and crankshaft

To remove and to fit

Operation 5-3

Special requirements

Hex hole setscrews (A1) : Torque Nm (lbf ft) kgf m

Hex setscrews (A2) : Torque Nm (lbf ft) kgf m

102-05, 103-07, 103-10

27 (20) 2,7

27 (20) 2,7

102-05, 103-07, 103-10

27 (20) 2,7

51 (38) 5,2

103-13, 103-15, 104-19, 104-22

103-13, 103-15, 104-19, 104-22

Check that the oil ways of the bearings match up with the oil ways in the block.

Caution:  Before removal and fitting of the crankshaft ensure that the pressure relief valve has been removed.

Notes:

For emissions approved engines. The fuel adjustment screw must not be altered from the original setting.

The maximum No Load Speed must be checked after assembly.

If a new crankshaft is fitted, see Operation 3-13.

Continued

Workshop Manual, TPD 1377E, issue 4

59

This document has been printed from SPI². Not for Resale

5

100 Series

1

2

60

Workshop Manual, TPD 1377E, issue 4

This document has been printed from SPI². Not for Resale

5

100 Series

Bearing clearance

To check

Operation 5-4

Special requirements

Clearance mm (in)

Engine model

Standard

Service limit

0,20 (0.0079)

0,20 (0.0079)

0,20 (0.0079)

102-05, 103-07

0,031 - 0,079 (0.00122 - 0.00311)

0,035 - 0,083 (0.00138 - 0.00327)

0,035 - 0,085 (0.00138 - 0.00335)

103-10

103-13, 103-15, 104-19, 104-22

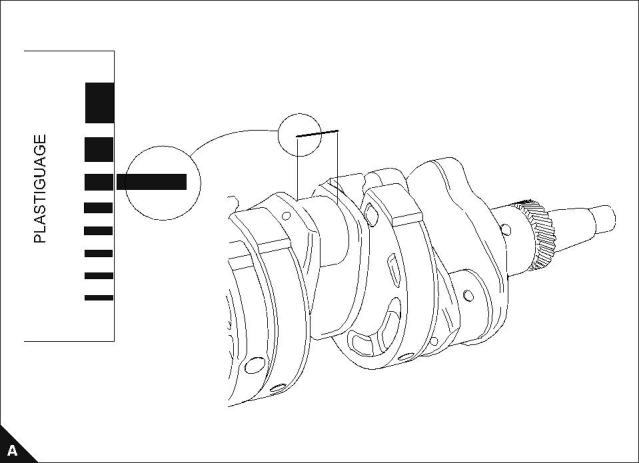

Use Plastigauge® to check the bearing clearance.

Tighten the main bearings to the torque settings given in Operation 5-5 for two and three cylinder engines or

Operation 5-6 for four cylinder engines.

1.0

2.0

2.5

3.0

4.0

5.0

6.0

7.0

INCH

Workshop Manual, TPD 1377E, issue 4

61

This document has been printed from SPI². Not for Resale

5

100 Series

Main bearings

To dismantle and to assemble (two and three cylinder engines)

Operation 5-5

Special requirements

Bearing holder (Aluminium) : Thickness mm (in)

Torque Nm (lbf ft) kgf m

Standard

Service limit

102-05, 103-07, 103-10

Aluminium Bearings

22 (16) 2,2

21,85 - 21,95 (0.8602 - 0.8641)

21,6 (0.8503)

102-05, 103-07, 103-10

Cast Iron Bearings

27 (19.9) 2,7

N/A

N/A

End Float : Clearance mm (in)

Engine model

Standard

Service limit

0,50 (0.0197)

0,50 (0.0197)

102-05, 103-07

103-10

0,10 - 0,30 (0.0040 - 0.0120)

0,05 - 0,30 (0.0020 - 0.0120)

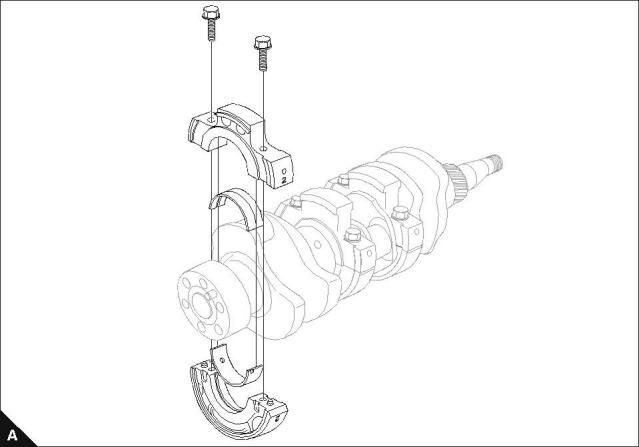

1  Identify position of bearing carriers on shaft.

2  Install bearing carriers on the crankshaft ensuring oil holes align with feed holes in cylinder block.

3  Check end float.

4  Check number 2 bearing holder on 102-05 engines and number 3 bearing holder on 103-07 and 103-10

engines for wear, poor contact, look burnt or other defects. Defective bearing holders must be renewed.

Notes:

For emissions approved engines. The fuel adjustment screw must not be altered from the original setting.

The maximum No Load Speed must be checked after assembly.

62

Workshop Manual, TPD 1377E, issue 4

This document has been printed from SPI². Not for Resale

5

100 Series

To dismantle and to assemble (four cylinder engines)

Operation 5-6

Special requirements

Torque Nm (lbf ft) kgf m

103-13, 103-15, 104-19, 104-22

51 (38) 5,2

End float : Clearance mm (in)

Thrust washer : Thickness mm (in)

Standard

Service limit

Standard

Service limit

0,10 - 0,40 (0.0040 - 0.0160)

0,50 (0.0197) max

2,95 - 3,00 (0.1161 - 0.1181)

2,80 (0.1102) max

1  Identify position of bearing carriers on shaft.

2  Install bearing carriers on shaft ensuring oil holes align with feed holes in cylinder block.

3  Check end float clearance (A2).

Note:  Ensure that the thrust washers are aligned correctly, and are fitted with their oil grooves towards the

crankshaft.

4  Check the thrust washers for wear, poor contact, look burnt, or have any other defects. Defective washers

must be renewed.

Note:  Item (A1) is only used on 104-19 and 104-22 engines.
