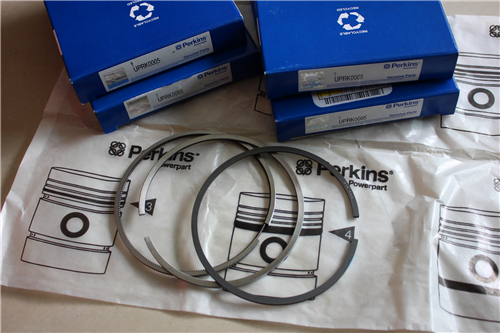

Perkins珀金斯850-854F柴油發動機T412817活塞環
詳細描述

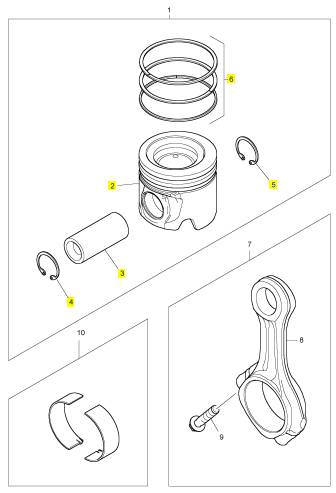

項目 零配件號碼 最新件號 描述
2 1 活塞
3 1 軸頭銷
4 T412193 1 T412193 CIRCLIP
5 T412193 1 T412193 CIRCLIP
6 T412817 1 T412817 活塞環總成
(6) T418483 1 T418483 活塞環總成 -特大號
|
Oil pump end float |
|
To check |
|
Operation 6-13 |
|
Special requirements |
|
Clearance mm (in) |
|
Standard |
|
Service limit |
|
0,10 - 0,15 (0.0040 - 0.0060) |
|
0,20 (0.0079) |
|
Use a feeler gauge to check the end float clearance of the oil pump. Adjust with 0,1. 0,15. 0,2. and 0,5 mm shims. |
|
78 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|
Governor spring |
|
To locate and to check |
|
Operation 6-14 |
|

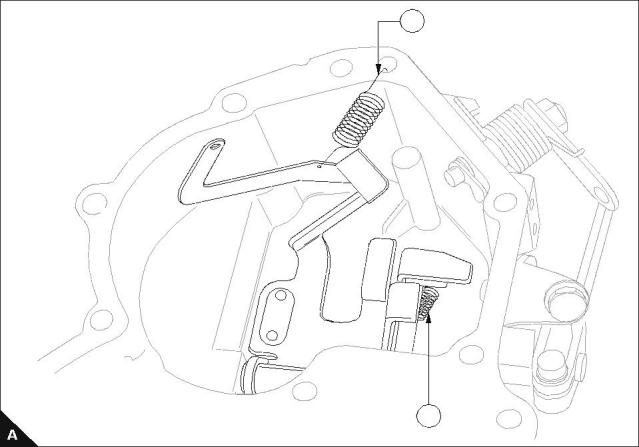

The main governor springs are colour coded to assist with identification. The colour code is as follows: |
|
Part Number 198217580 198217570 198217320 198217110 |
|
Description Main Spring Main Spring Main Spring Main Spring |
|
Colour Code |
|
Black |
|
Purple |
|
Yellow - green Silver |
|
Note: Remember the locations of the start spring (A1) and the governor spring (A2). |
|
1 |
|
2 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
79 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|
Oil seal protector |
|
To fit |
|
Operation 6-15 |
|

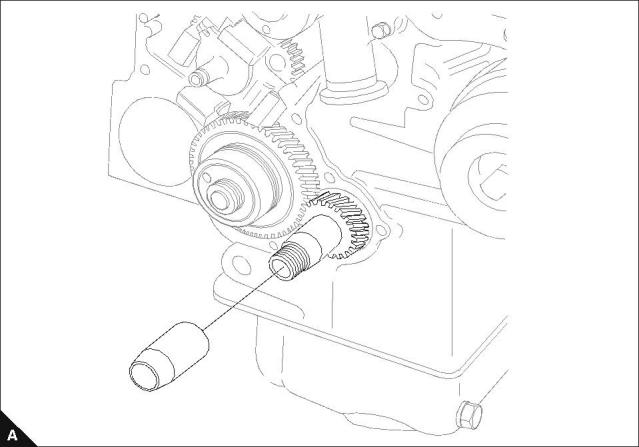

Note: Fit the oil seal protector before the timing cover is fitted. |
|
80 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|
Timing cover |
|
To fit |
|
Operation 6-16 |
|

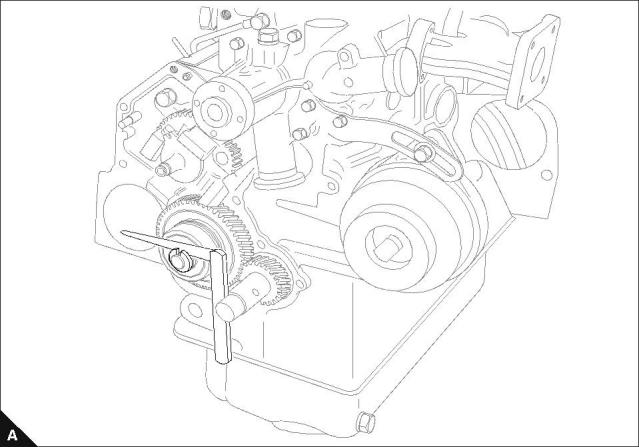

1 Ensure the oil pin (A1) locates in the hole (A2) in the idler gear. |
|
2 Remove the oil seal protector after the timing cover is fitted. Fit the key onto the crankshaft nose, refer to Operation 5-1. |
|
3 To fit the crankshaft pulley refer to Operation 5-1. |
|
2 |
|
1 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
81 |
|
This document has been printed from SPI². Not for Resale |
|
This page is intentionally blank |
|
This document has been printed from SPI². Not for Resale |
|
100 Series |
|
7 |
|
Cylinder block assembly |
|
7 |
|
Front bush |
|
To fit |
|
Operation 7-1 |
|
The bush must be fitted with the chamfered side (A2) into the block first, with the joint (A1) uppermost. To remove, use the tool from the inside of the cylinder block. |
|
Note: Make sure that the oil way in the bush is aligned with the oil way in the block. |
|
1 |
|
2 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
83 |
|
This document has been printed from SPI². Not for Resale |
