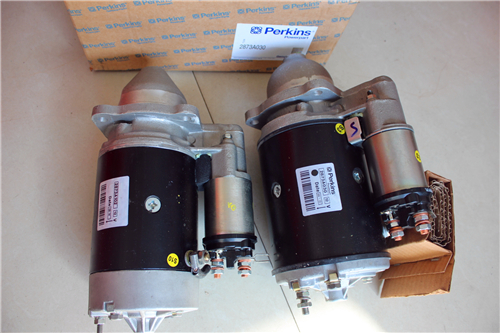

Perkins珀金斯850-854F柴油發動機T414053啟動馬達
詳細描述
項目 零配件號碼 最新件號 描述

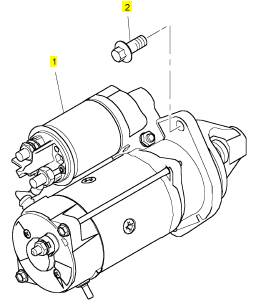

1 T414053 1 T414053 啟動馬達
2 2314 J204 3 2314 J204 螺旋
項目 零配件號碼 最新件號 描述

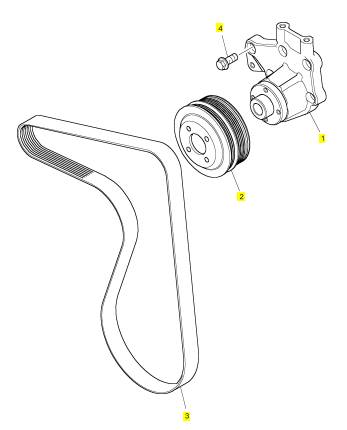

1 T412344 1 T412344 FANDRIVE
2 T412330 1 T412330 風扇駕駛皮帶輪
3 4220672 1 4220672 帶
3 T412331 1 4220672 帶
4 T412343 5 T412343 螺旋
項目 零配件號碼 最新件號 描述

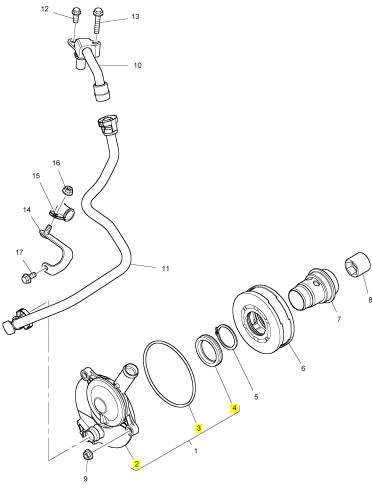

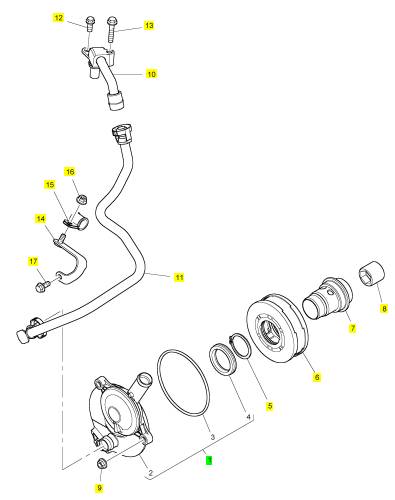

1 T414131 1 T414131 呼吸者閥
5 T411318 1 T411318 CIRCLIP
6 T411358 1 T401189 呼吸者機械要素
7 T414132 1 T414132 軸
8 T411314 1 T411314 螺帽
9 2318 A602 3 2318 A602 螺帽
10 T414109 1 T414109 管 -呼吸者
11 T414107 1 T414107 水管 -呼吸者
12 2314 F003 1 2314 F003 螺旋
13 2314 F007 1 2314 F007 螺旋
14 T414124 1 T414124 托架
15 T414353 1 T414353 管夾
16 2318 A602 1 2318 A602 螺帽
17 2314 F003 1 2314 F003 螺旋
項目 零配件號碼 最新件號 描述

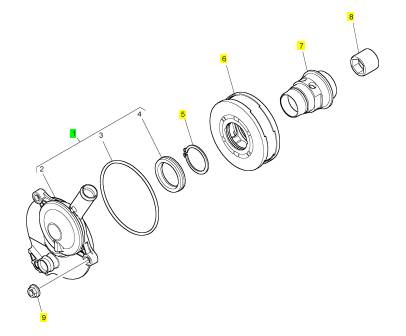

2 1 呼吸者閥
3 T411315 1 T411315 密封 - O 的圈
4 T411321 1 T411321 封閉砂條
項目 零配件號碼 最新件號 描述
1 T414131 1 T414131 呼吸者閥
5 T411318 1 T411318 CIRCLIP
6 T411358 1 T401189 呼吸者機械要素
7 T411362 1 T411362 軸
8 T411314 1 T411314 螺帽
9 2318 A602 3 2318 A602 螺帽
|

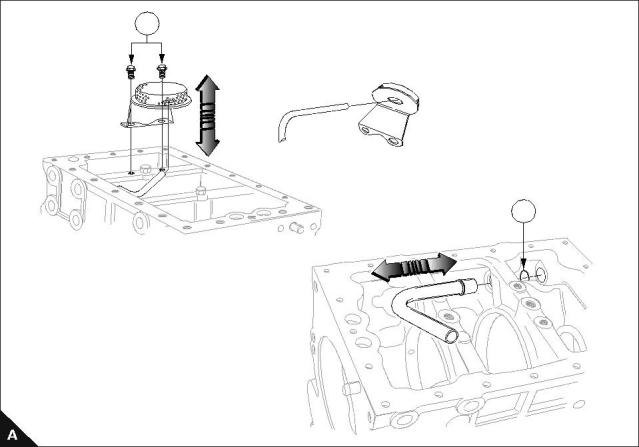

Strainer and suction pipe |
|
To remove and to fit |
|
Operation 10-4 |
|
Special requirements |
|
Torque Nm (lbf ft) kgf m |
|
Filter setscrews (A1) |
|
11 (8) 1,1 |
|
Note: On assembly renew the 'O' ring (A2). |
|
1 |
|
2 |
|
94 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
10 |
|
100 Series |
|
Lubricating oil pump |
|
To remove, to fit and to inspect |
|
Operation 10-5 |
|
For the tolerances see "Idler gear and oil pump" on page 75 and "Oil pump end float" on page 78. |
|
Note: Extra shims (A1) may be needed to achieve the standard clearance. |
|
1 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
95 |
|
This document has been printed from SPI². Not for Resale |
|
10 |
|
100 Series |
|

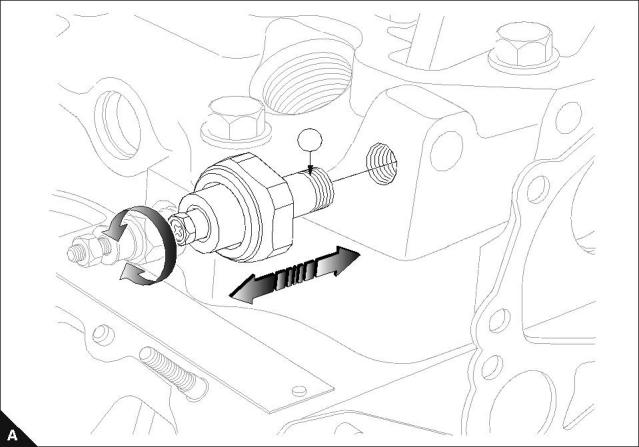

Oil pressure switch |
|
To remove and to fit |
|
Operation 10-6 |
|
Special requirements |
|
POWERPART products |
|
Torque Nm (lbf ft) kgf m |
|
Description |
|
Part number |
|
Platelock |
|
21826039 |
|
Oil pressure switch |
|
11 (8) 1,1 |
|
Powerpart Platelock must be applied to the thread (A1) when the oil pressure switch is fitted to the cylinder block. |
|
Oil pressure switch range of operation 19,3 - 39,3 KPa (2.8-5.7 lbf/in²). |
|
1 |
|
96 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
100 Series |
|
11 |
|
Fuel system |
|
11 |
|
Atomisers |
|
To remove |
|
Operation 11-1 |
|
Cautions: |
|
Deep sockets should always be used for this procedure. Connections should be blanked off until assembly. |
|
103-13 103-15 104-19 104-22 |
|
102-05 103-07 103-10 |
|
3 |
|
2 |
|
1 |
|
A |
|
Workshop Manual, TPD 1377E, issue 4 |
|
97 |
|
This document has been printed from SPI². Not for Resale |
