首頁 產品展示>Perkins珀金斯1000柴油發動機31258185風扇

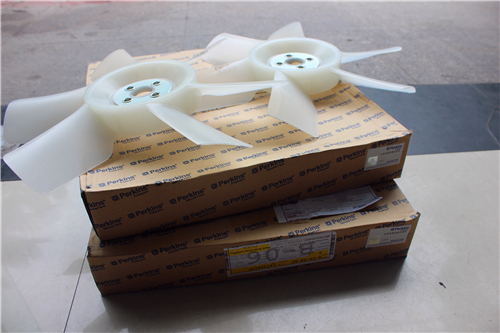

Perkins珀金斯1000柴油發動機31258185風扇

Perkins珀金斯1000柴油發動機31258185風扇供應商，Perkins珀金斯1000柴油發動機31258185風扇技術價格規格咨詢服務，Perkins珀金斯1000柴油發動機31258185風扇零配件供應，Perkins珀金斯1000柴油發動機31258185風扇售后服務中心，Perkins珀金斯1000柴油發動機31258185風扇，Perkins珀金斯1000柴油發動機31258185風扇詳細的技術參數，
產品咨詢

詳細描述

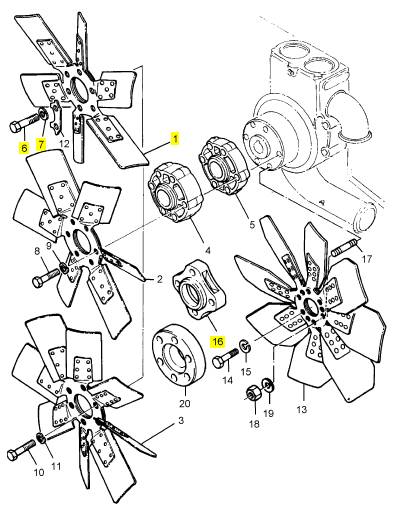

項目   零配件號碼    最新件號   描述

    1   31258185   1   31258185   風扇

    6   0746259    4   0746259    螺旋

    7   0920053    4   0920053    墊圈

    16  3748 W201  1   3748 W202  伸長

    項目   零配件號碼    最新件號   描述

    3   2614 B656  1   2614 B656  帶

    6   38167161   1   38167161   托架

    7   0826264    1   0826264    圖釘

    8   33134427   1   33134427   間隔器

    9   36151505   1   36151505   墊圈

    10  0576002    1   0576002    螺帽

    11  0920003    1   0920003    墊圈

    12  0920053    1   0920053    墊圈

    13  0826264    1   0826264    圖釘

    14  33134427   1   33134427   間隔器

    15  36151505   1   36151505   墊圈

    16  0576002    1   0576002    螺帽

    17  0920003    1   0920003    墊圈

    18  0920053    1   0920053    墊圈

    19  0746456    1   0746456    螺旋

    20  0920004    1   0920004    墊圈

    21  0920054    1   0920054    墊圈

    22  2184467    1   2184467    螺拴

    23  33283509   1   33283509   襯套

    24  0920006    1   0920006    墊圈

    25  0920006    1   0920006    墊圈

    26  0920055    1   0920055    墊圈

    28  0746459    1   0746459    螺旋

    29  0576051    1   0576051    螺帽

    30  0920004    1   0920004    墊圈

    31  0920004    1   0920004    墊圈

    32  0920054    1   0920054    墊圈

    33  36154105   1   36154105   板

    34  0746456    1   0746456    螺旋

    35  0576051    1   0576051    螺帽

    36  33135119   1   33135119   間隔器

    37  0920054    1   0920054    墊圈

    38  33134427   2   33134427   間隔器

    39  0746257    2   0746257    螺旋



KENR6906

57

Disassembly and  Assembly Section

NOTICE

Keep all parts clean from contaminants.

Contaminants may cause  rapid wear and  shortened

component life.

g01397091

Illustration 128

6.  If necessary, follow Steps 6.a and 6.b in order to

remove the support bracket.

a.  Remove bolts (6).

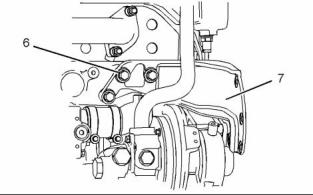

g01386146

Illustration 126

b. Remove support bracket (7).

i02767679

Front Plate - Install

Installation Procedure

NOTICE

Keep all parts clean from contaminants.

Contaminants may cause  rapid wear and  shortened

component life.

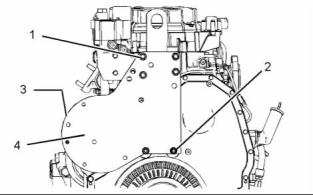

g01397095

Illustration 127

1.  Remove bolts (3) (not shown) that secure plate (4)

to the support bracket.

2.  Remove nuts (1).

3.  Support the weight of plate (4). The weight of the

plate is approximately 25 kg (55 lb).

4.  Remove nuts (2) and remove plate (4).

5.  Remove spacer (5) from the cylinder head. Note

the routing of the wiring  harness between the

spacer and the cylinder head.

g01397091

Illustration 129

1.  If support bracket (7) was removed, position the

support bracket on the cylinder block and install

bolts (6) finger tight.

This document has been printed from SPI². Not for Resale




58

KENR6906

Disassembly and  Assembly Section

b. Install the belt tightener. Refer to Disassembly and

Assembly, “Belt Tightener - Install”.

i02754819

Crankcase Breather - Remove

and Install

(Closed Breather)

Removal Procedure

g01397095

Illustration 130

NOTICE

Keep all parts clean from contaminants.

Contaminants may cause  rapid wear and  shortened

component life.

NOTICE

Care must be taken to ensure that fluids are contained

during performance of inspection, maintenance, test-

ing, adjusting and repair of the product. Be prepared to

collect the fluid with suitable containers before open-

ing any  compartment or  disassembling any  compo-

nent containing fluids.

Dispose of all fluids according to local regulations and

mandates.

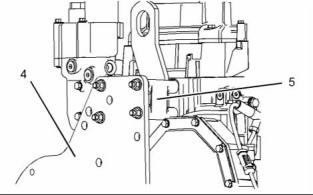

g01386146

Illustration 131

2.  Install spacer (5) to the cylinder head.

Note: Ensure the correct routing of the wiring harness

around the spacer.

3.  Position plate (4) on the studs and install nuts (1)

and (2).

4.  Tighten nuts (1) and (2) to a torque of 100 N·m

(74 lb ft).

5.  Install bolts (3) (not shown) finger tight.

6.  If support bracket (7) was removed, tighten bolts

(6) to a torque  of 55 N·m (41 lb  ft). Refer to

Illustration 129.

7.  Tighten bolts (3) (not shown) to a torque of 55 N·m

(41 lb ft).

Note: Ensure that the plate is not stressed as  the

bolts are tightened.

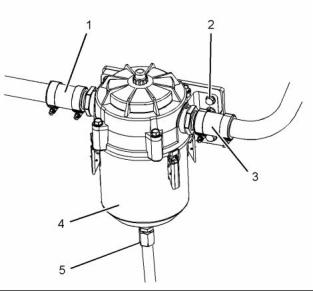

g01401970

Illustration 132

End By:

1.  Loosen the clamp and disconnect hose (1) from

crankcase breather (4).

a.  Install the fan drive. Refer to Disassembly and

Assembly, “Fan Drive - Install”.

2.  Loosen the clamp and disconnect hose (3) from

crankcase breather (4).

This document has been printed from SPI². Not for Resale




KENR6906

59

Disassembly and  Assembly Section

3.  Disconnect hose (5) from crankcase breather (4).

i02790384

Crankcase Breather - Remove

and Install

4.  Remove bolts (2) and remove crankcase breather

(4) from the mounting bracket.

(Open Breather)

5.  If necessary, disassemble crankcase breather

(4). Refer to Operation and Maintenance Manual,

“Engine Crankcase Breather - Replace” for the

correct procedure.

Removal Procedure

Installation Procedure

NOTICE

Keep all parts clean from contaminants.

NOTICE

Keep all parts clean from contaminants.

Contaminants may cause  rapid wear and  shortened

component life.

Contaminants may cause  rapid wear and  shortened

component life.

g01401675

Illustration 134

g01401970

Illustration 133

1.  Remove bolt (2), clip (3) and spacer (4).

1.  Ensure that hoses (1), (3) and (5) are clean and

free from restriction.

2.  Loosen the hose clamp and remove hose (1) from

the valve mechanism cover base.

2.  If necessary, assemble crankcase breather (4).

Refer to Operation and Maintenance Manual,

“Engine Crankcase Breather - Replace” for the

correct procedure.

Installation Procedure

NOTICE

Keep all parts clean from contaminants.

3.  Position crankcase breather (4) on the mounting

bracket and install bolts (2). Tighten the bolts to a

torque of 28 N·m (21 lb ft).

Contaminants may cause  rapid wear and  shortened

component life.

4.  Connect hose (5) to crankcase breather  (4).

Tighten the nut securely.

5.  Connect hose (3) to crankcase breather  (4).

Tighten the clamp securely.

6.  Connect hose (1) to crankcase breather  (4).

Tighten the clamp securely.

This document has been printed from SPI². Not for Resale
