首頁
產品展示>珀金斯發動機2871A166交流充電發電機
產品中心
珀金斯發動機2871A166交流充電發電機
詳細描述

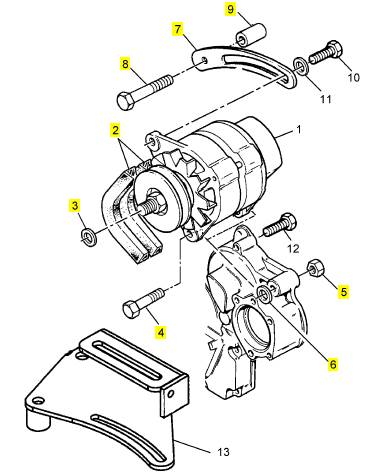

項目 零配件號碼 最近的部分號碼 描述
1 2871 A166 1 2871 A166 交流充電發電機
2 2614 D615 1 2614 D615 帶
3 3313 E727 1 3313 E727 間隔器
4 2314 J022 1 2314 J022 螺旋
5 2318 A604 1 2318 A604 螺帽
6 2131 A010 1 2131 A010 墊圈
7 3615 X014 1 3615 X014 桿
8 2314 J018 1 2314 J018 螺旋
9 3312 K025 1 3312 K025 間隔器
10 2314 H004 1 2314 H004 螺旋
11 0920497 1 0920497 墊圈

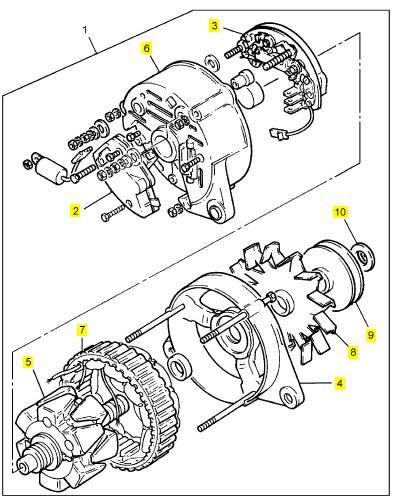

項目 零配件號碼 最近的部分號碼 描述
2 28710404 1 28710404 調整器
3 28710403 1 28710403 整流器
4 28710402 1 28710402 托架組合
5 28710287 1 28710352 轉子 - 電的修補
6 28710401 1 28710401 托架組合
7 28710353 1 28710353 固定子
8 28710296 1 28710477 風扇
9 28710400 1 28710400 交流充電發電機皮帶輪
10 2871 W007 1 2871 W007 間隔器

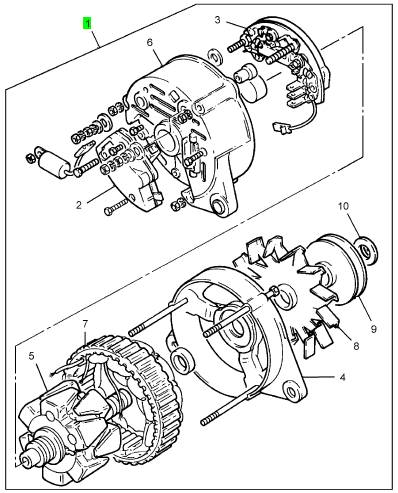

項目 零配件號碼 最近的部分號碼 描述
1 2871 A166 1 2871 A166 交流充電發電機

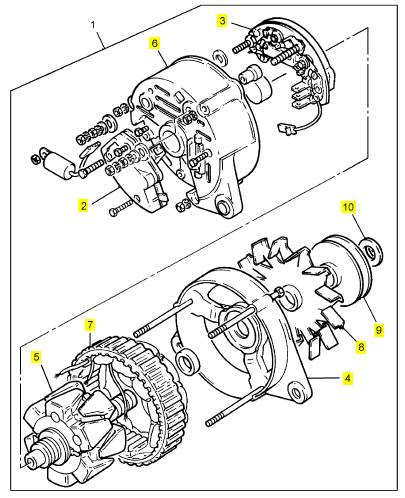

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 28710404 1 28710404 REGULATOR
3 28710403 1 28710403 RECTIFIER
4 28710402 1 28710402 BRACKET ASSEMBLY
5 28710287 1 28710352 ROTOR - ELECTRIC REPAIR
6 28710401 1 28710401 BRACKET ASSEMBLY
7 28710353 1 28710353 STATOR
8 28710296 1 28710477 FAN
9 28710400 1 28710400 ALTERNATOR PULLEY
10 2871W007 1 2871W007 SPACER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3681E029 1 3681E029 GASKET - CYLINDER HEAD
3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER
4 3685A011 1 3685A011 GASKET - WATER PUMP
5 36834169 1 36834169 GASKET - WATER CONNECTION
6 3681V009 1 3681V009 GASKET - IND MANIFOLD
7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD
8 U3688C037 1 U3688C037 GASKET
9 2415H490 4 2415H490 SEAL - INJECTOR
10 L311FF02 4 L311FF02 INJECTOR WASHER
11 4141A009 4 4141A009 CLAMP
14 2418M508 8 2418M508 SEAL - VALVE STEM
15 26420224 8 26420224 SEAL - INJECTOR
16 33811112 1 33811112 OLIVE
17 33811113 3 33811113 OLIVE
18 33811115 2 33811115 OLIVE
19 0566003 1 0566003 OLIVE
20 3682M002 1 3682M002 GASKET - WATER PUMP
21 2415A086 1 2415A086 SEAL - O RING
22 2415A092 1 2415A092 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3681E029 1 3681E029 GASKET - CYLINDER HEAD
3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER
4 3685A011 1 3685A011 GASKET - WATER PUMP
5 36834169 1 36834169 GASKET - WATER CONNECTION
6 3681V009 1 3681V009 GASKET - IND MANIFOLD
7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD
8 U3688C037 1 U3688C037 GASKET
9 2415H490 4 2415H490 SEAL - INJECTOR
10 L311FF02 4 L311FF02 INJECTOR WASHER
11 4141A009 4 4141A009 CLAMP
14 2418M508 8 2418M508 SEAL - VALVE STEM
15 26420224 8 26420224 SEAL - INJECTOR
16 33811112 1 33811112 OLIVE
17 33811113 3 33811113 OLIVE
18 33811115 2 33811115 OLIVE
19 0566003 1 0566003 OLIVE
20 3682M002 1 3682M002 GASKET - WATER PUMP
21 2415A086 1 2415A086 SEAL - O RING
22 2415A092 1 2415A092 SEAL - O RING
